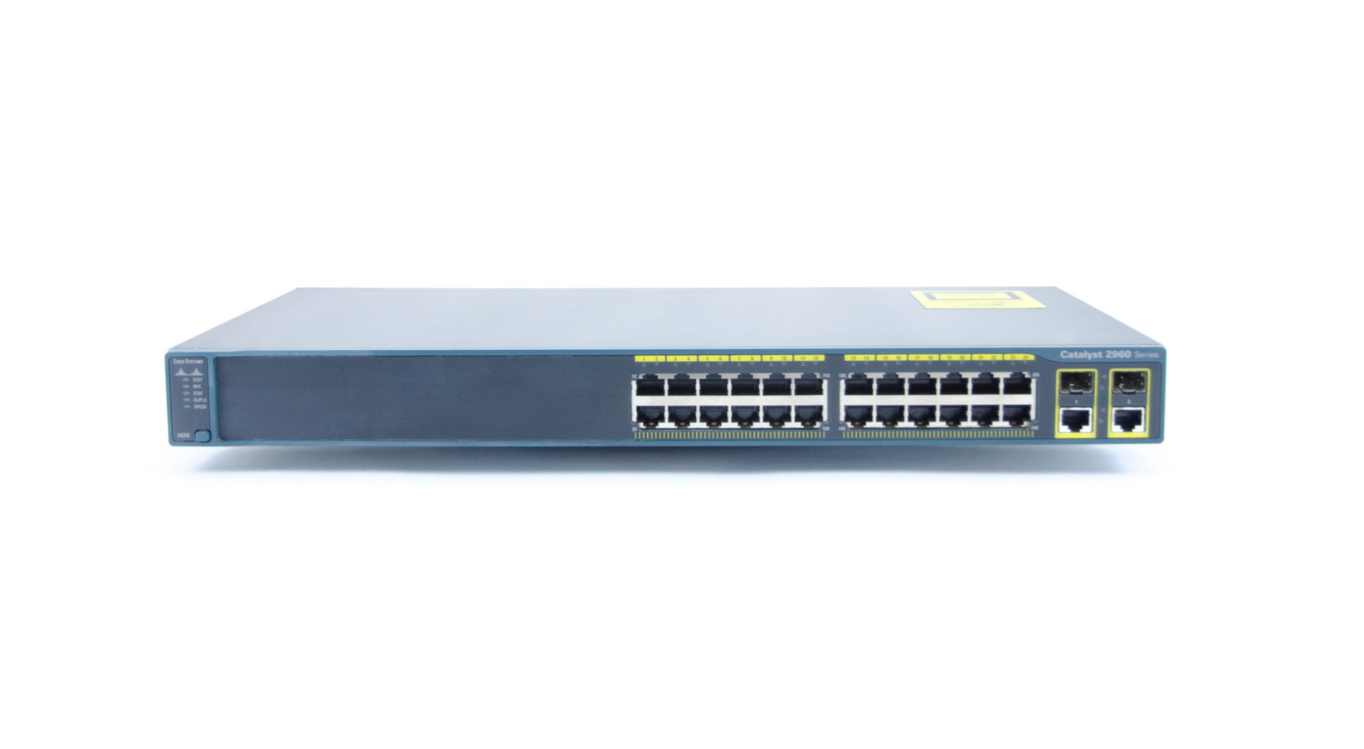

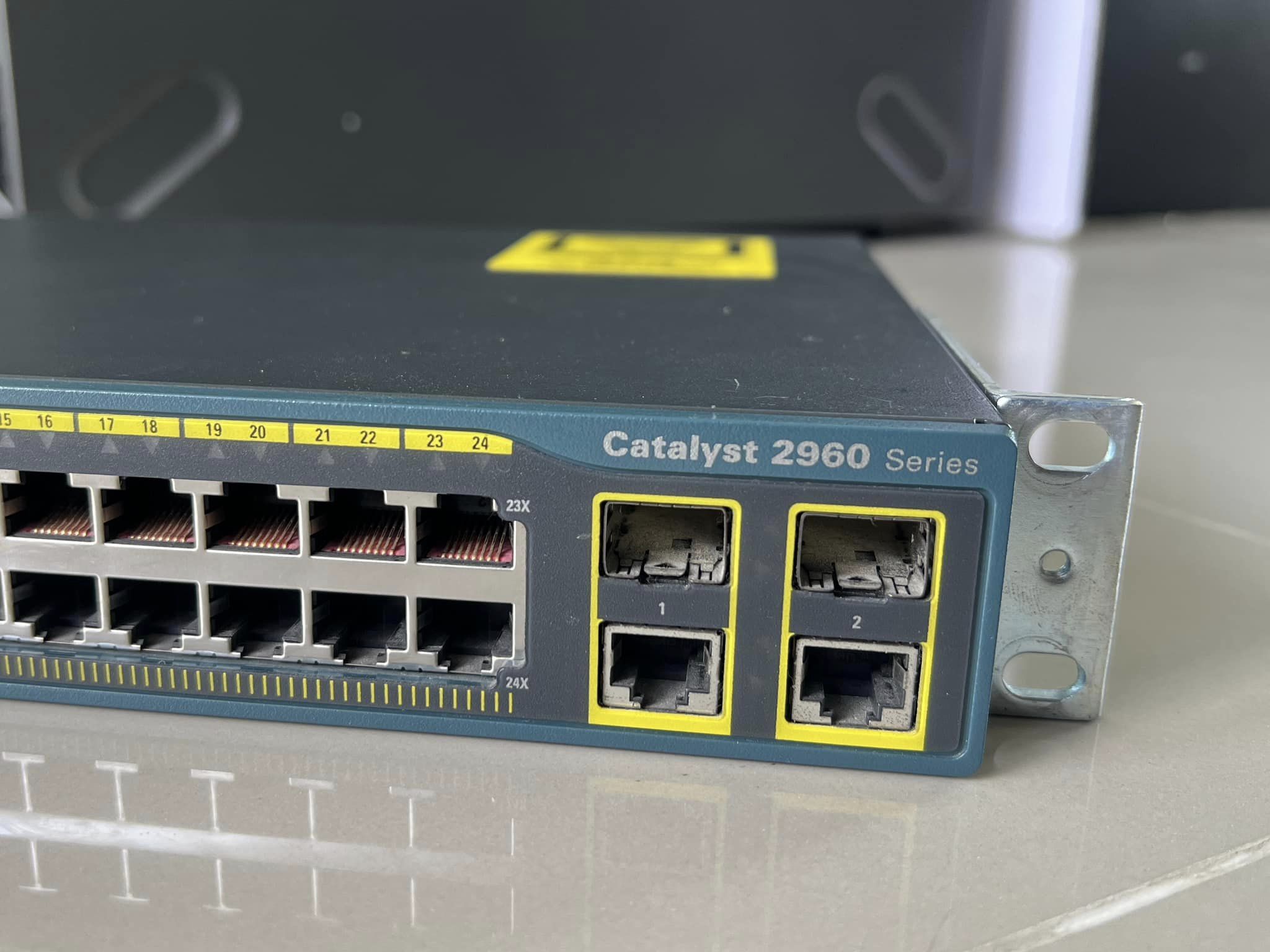

Cisco Catalyst WS-C2960-24TC-L

Cisco Catalyst WS-C2960-24TC-L Managed Switch – Product Overview

The Cisco Catalyst WS-C2960-24TC-L is a reliable Layer 2 managed Ethernet switch designed for enterprise access-layer deployments. It delivers secure, scalable, and energy-efficient network connectivity for small to medium-sized businesses, branch offices, and enterprise campus environments. With 24 Fast Ethernet ports and dual Gigabit uplinks, this switch ensures consistent performance, network segmentation, and simplified management.

Key Features of Cisco WS-C2960-24TC-L

• 24 x 10/100 Fast Ethernet Ports for access-layer connectivity

• 2 x 10/100/1000 Gigabit Ethernet Uplinks for high-speed backbone connections

• Cisco LAN Base IOS Software for enterprise-grade Layer 2 features

• Advanced Security with 802.1X authentication, ACLs, and port security

• Energy Efficient Ethernet (EEE) and Cisco EnergyWise support

• Fanless, Rack-Mountable Design for quiet and space-efficient deployment

• SNMP, CLI, and Web-Based Management for simplified administration

Technical Specifications – Cisco Catalyst WS-C2960-24TC-L

Hardware Specifications

• Model Number: WS-C2960-24TC-L

• Product Series: Cisco Catalyst 2960 Series

• Switch Type: Managed Layer 2 Ethernet Switch

• Form Factor: Rack-mountable (1U)

Port Configuration

• Downlink Ports: 24 × 10/100 Mbps Fast Ethernet (RJ-45)

• Uplink Ports: 2 × 10/100/1000 Mbps Gigabit Ethernet (RJ-45)

• Auto-Negotiation: Yes

• Auto MDI/MDIX: Yes

Performance

• Switching Capacity: 16 Gbps

• Forwarding Rate: 6.5 Mpps

• MAC Address Table: 8,000 entries

• VLAN Support: Up to 255 VLANs

Network & Security Features

• IEEE 802.1Q VLAN tagging

• 802.1X Network Access Control

• Port Security & Storm Control

• DHCP Snooping & IP Source Guard

• Access Control Lists (ACLs)

• Spanning Tree Protocol (STP, RSTP, MSTP)

Management & Monitoring

• Cisco IOS LAN Base

• Command Line Interface (CLI)

• SNMP v1, v2c, v3

• RMON & Syslog Support

• Web-based Device Manager

Power & Environmental

• Power Supply: Internal

• Power Consumption: Approx. 15W

• Operating Temperature: 0°C to 45°C

• Operating Humidity: 10% to 90% (non-condensing)

Use Cases & Applications

• Enterprise access-layer switching

• SMB and branch office networks

• Educational institutions

• Retail and hospitality networks

• Secure wired LAN environments

Why Choose Cisco Catalyst WS-C2960-24TC-L?

• Proven Cisco reliability and long-term stability

• Enterprise-level security and traffic management

• Cost-effective solution for legacy Fast Ethernet environments

• Easy integration with existing Cisco infrastructure
