Dell PowerEdge R720 Server: The High-Performance Evolution for Modern Workloads
Apr

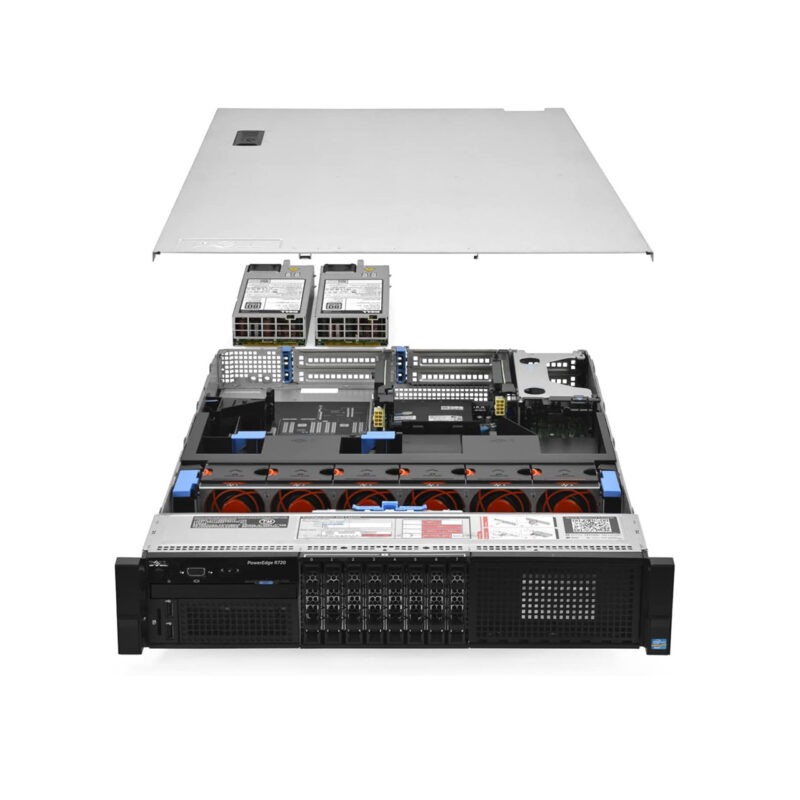

The Dell PowerEdge R720 represents a significant leap forward in the 12th Generation of Dell’s server lineup. Designed to handle more demanding environments than its predecessor, the R720 is an exceptionally adaptable 2U rack server. It is a favorite among Pakistani enterprises for virtualization, high-performance computing (HPC), and intensive data analytics.
With improved processing power, faster memory, and enhanced I/O capabilities, the R720 remains a top-tier choice for businesses in Karachi, Lahore, and Islamabad that require enterprise-grade reliability with modern efficiency in 2026.
Key Performance Highlights
- Next-Gen Processing Power: Built on the Intel C602 chipset, the R720 supports dual Intel Xeon E5-2600 or E5-2600 v2 series processors. This allows for up to 24 cores per server, providing massive multi-threaded performance.
- Massive RAM Capacity: With 24 DIMM slots, the R710’s successor jumps to a maximum of 768GB of DDR3 memory. It supports LR-DIMMs (Load Reduced) and faster speeds up to 1866MT/s, ideal for dense virtual desktop infrastructure (VDI).
- Flexible Storage Configurations: The R720 offers several backplane options to suit your specific data needs:
- 8 x 3.5-inch LFF: For maximum storage capacity.
- 8 x 2.5-inch SFF: Balanced performance and capacity.
- 16 x 2.5-inch SFF: Optimized for high-speed SAS or SSD arrays.
- PCIe 3.0 Expansion: Features 7 integrated PCIe slots, offering double the interconnect bandwidth of previous generations. This supports high-end GPUs and 10GbE network cards without performance bottlenecks.
- Fresh Air 2.0 Technology: Designed to operate at higher ambient temperatures (up to 45°C) without hardware damage, significantly reducing cooling costs in Pakistan’s warmer climates.
Technical Specifications
| Component | Specification |
| Form Factor | 2U Rack Server |
| Processors | Up to 2x Intel Xeon E5-2600 / E5-2600 v2 (Up to 12 Cores per CPU) |
| Memory Slots | 24 x DDR3 DIMM Slots (RDIMM, UDIMM, or LRDIMM) |
| Max RAM | 768GB (using 32GB LRDIMMs) |
| Hard Drive Bays | 8 x 3.5″ or up to 16 x 2.5″ Hot-Plug Bays |
| RAID Controllers | Internal: PERC S110, H310, H710, or H710P (1GB NV Cache) |
| Network Interface | Select Network Adapter (Daughter card) with 4 x 1GbE or 2 x 10GbE options |
| Power Supplies | Titanium/Platinum Redundant (495W, 750W, or 1100W) |
| Management | iDRAC7 with Lifecycle Controller (Express or Enterprise) |
Why Upgrade to the R720 in Pakistan?
1. Superior Virtualization Density
The 24 DIMM slots allow IT managers to pack more Virtual Machines (VMs) onto a single physical host than ever before. For Pakistani software houses and IT service providers, this means less physical hardware to manage and lower licensing costs for virtualization software.
2. GPU Acceleration Support
The R720 can support up to two double-wide GPU accelerators (such as NVIDIA Tesla or GRID). This makes it a powerful asset for engineering firms in Pakistan performing 3D rendering or for educational institutions focusing on AI and machine learning.
3. Advanced Remote Management
The iDRAC7 system offers a more responsive and feature-rich remote management experience than earlier versions. With the Enterprise license, you can manage your server remotely from a different city, viewing the console even during the boot process or OS crashes.
Common Use Cases in 2026
- VDI Deployments: Hosting high-performance virtual desktops for remote office workers.
- Database Servers: High-speed processing for SQL or Oracle databases using SSD-tiering.
- Web Hosting: Providing the backbone for high-traffic Pakistani e-commerce platforms.
- Private Cloud: Building a scalable internal cloud environment for large corporate groups.
Common FAQ & Expert Insights
1. Can the R720 support PCIe NVMe SSDs?
Yes, certain R720 chassis configurations support up to four front-access Express Flash PCIe SSDs, which provide significantly lower latency and higher IOPS compared to standard SAS/SATA SSDs.
2. What is the power consumption difference between the R710 and R720?
Despite being more powerful, the R720 is often more efficient. At idle, a dual-processor R720 typically draws around 85W to 100W, depending on the drive configuration, thanks to Platinum/Titanium rated power supplies.
3. Does the R720 support 10Gb Networking?
Yes. Unlike older servers with fixed 1Gb ports, the R720 uses a Network Daughter Card (NDC). You can easily swap the standard 4-port 1Gb card for a dual-port 10Gb SFP+ or 10GBase-T card without using a PCIe slot.
4. Can I use the v2 processors in any R720?
To use Intel Xeon E5-2600 v2 processors, you must ensure your R720 has the latest BIOS and firmware updates. The v2 series offers better power efficiency and higher core counts (up to 12 cores per socket).
5. How much storage can I put in an R720?
In the 8-bay 3.5″ LFF configuration, using 12TB enterprise SAS drives, you can achieve nearly 96TB of raw internal storage in a single 2U chassis.
