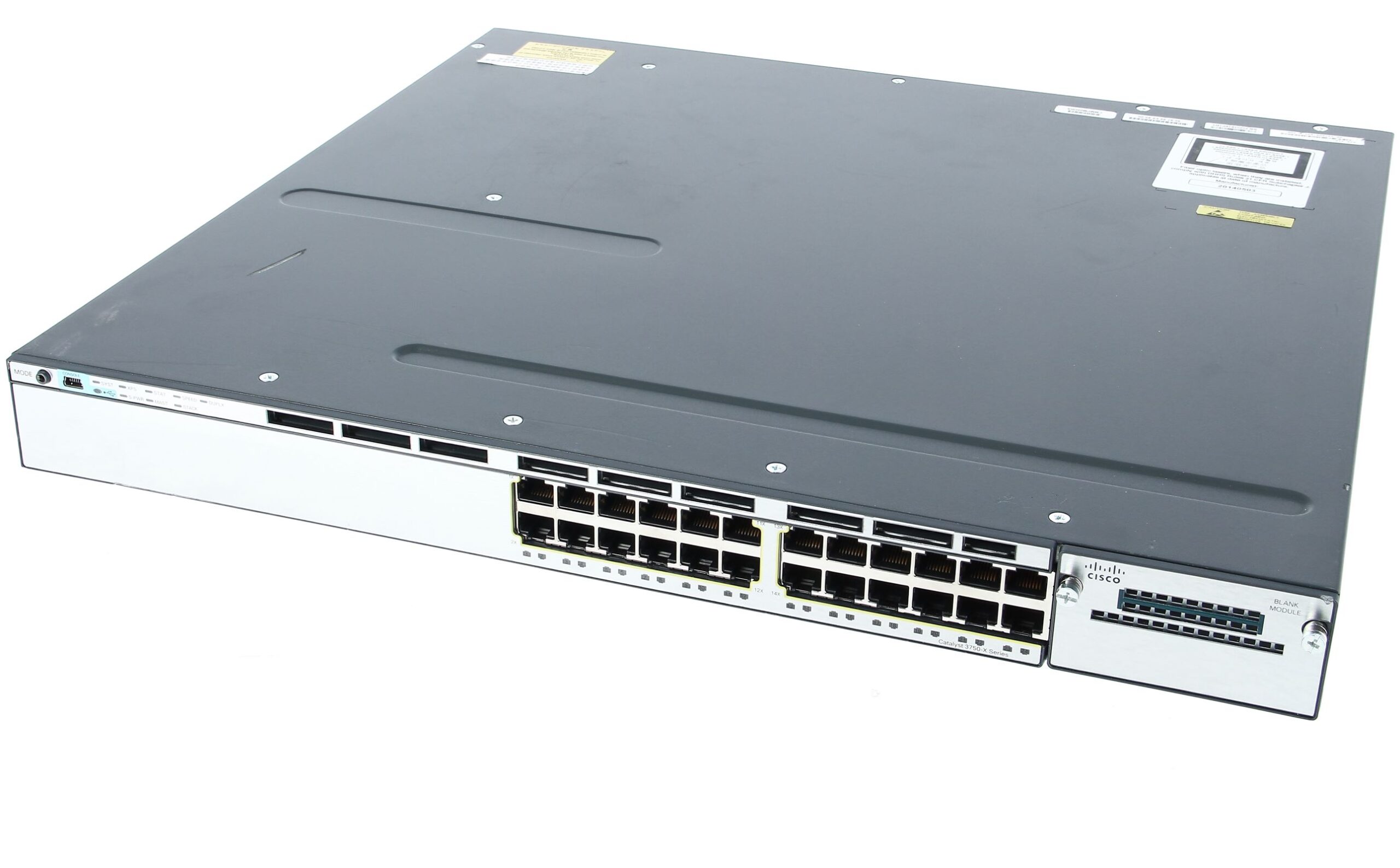

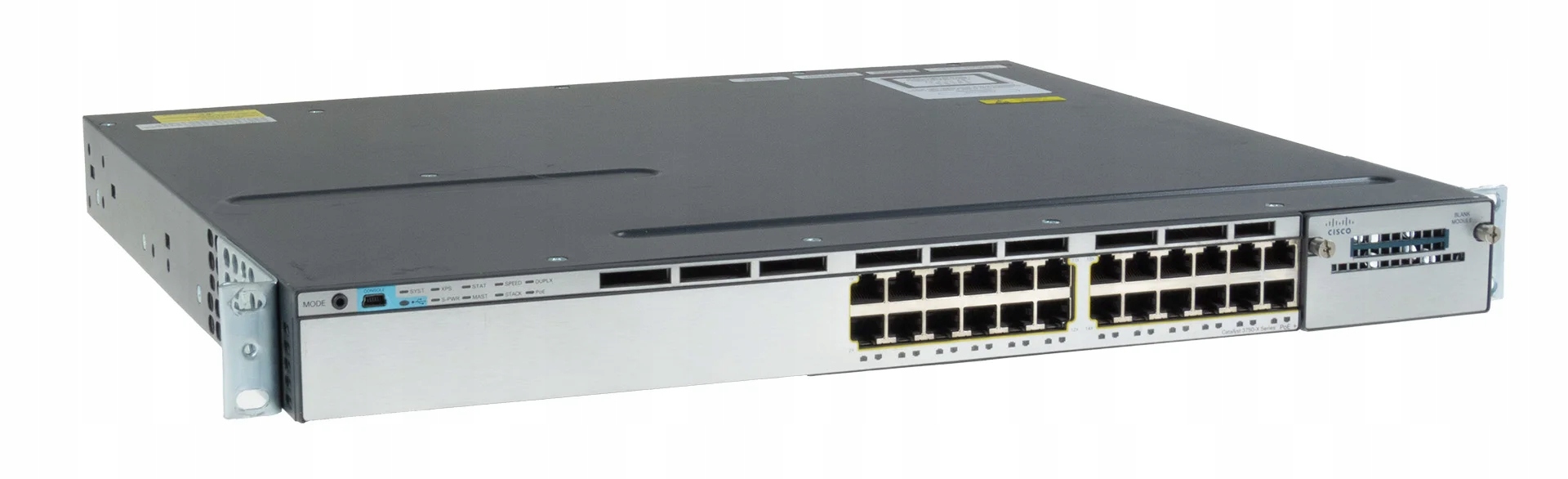

Cisco Catalyst WS-C3750X-24P-S: Specs, Features & Price in Pakistan

For growing corporate networks and mid-sized data centers in Pakistan, deploying a switch that balances high availability, robust security, and advanced routing capabilities is essential. The Cisco Catalyst WS-C3750X-24P-S is a proven enterprise-class, stackable Layer 3 switch that delivers Gigabit Ethernet connectivity with full Power over Ethernet Plus (PoE+) support.

Whether you are upgrading an access layer in a Karachi corporate office or deploying a reliable distribution switch for a manufacturing facility, understanding the capabilities of the 3750-X series ensures a scalable and highly available infrastructure.

Why the Catalyst 3750-X Series Excels in Enterprise Networks

The WS-C3750X-24P-S operates on the IP Base feature set. Unlike standard Layer 2 switches, this model provides enterprise-class Layer 3 routing capabilities, including static routing, RIP, and OSPF for routed access. Furthermore, it supports Cisco’s StackWise Plus technology, allowing network engineers to stack multiple switches to create a single logical unit with a stacking bandwidth of up to 64 Gbps, drastically simplifying management and enhancing redundancy.

Technical Specifications (WS-C3750X-24P-S)

Before integrating this hardware into your server rack, verify the hardware parameters to ensure it meets your throughput and feature requirements:

• Port Density: 24 x 10/100/1000 Gigabit Ethernet PoE+ ports.

• Uplink Interfaces: Requires optional Network Modules (e.g., C3KX-NM-1G for 4x 1G SFP or C3KX-NM-10G for 2x 10G SFP+).

• PoE Capability: Full IEEE 802.3at PoE+ support.

• Default Power Supply: 715W AC (C3KX-PWR-715WAC).

• Available PoE Budget: 435W.

• Feature Set: IP Base (Layer 3 routing features).

• Forwarding Bandwidth: 160 Gbps.

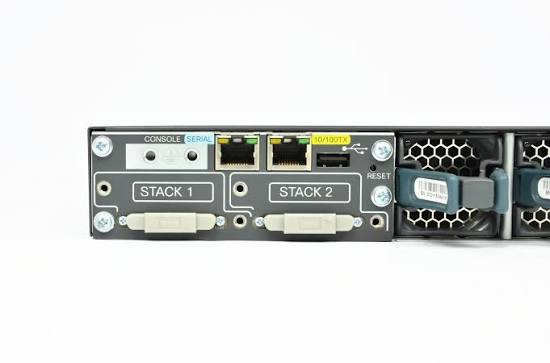

• Stacking Capability: StackWise Plus (64 Gbps) and StackPower supported.

• Form Factor: 1 RU (Rack Unit), Fixed configuration but modular uplinks/power.

Powering Endpoints: PoE+ and StackPower Technology

Managing power distribution is a critical component of modern network architecture. The WS-C3750X-24P-S provides a total PoE budget of 435W when equipped with its standard 715W power supply. This allows network administrators to deploy high-draw devices such as Cisco IP Phones, Wi-Fi 6 Access Points, and Pan-Tilt-Zoom (PTZ) surveillance cameras directly from the switch without external power injectors.

Additionally, this switch supports Cisco StackPower. This innovative technology allows the power supplies in a stack to be shared as a common resource among all switches. If one switch’s power supply fails, the power from other switches in the stack is instantly reallocated to prevent downtime, providing unparalleled power redundancy for critical network edge devices.

Ideal Deployment Scenarios in Pakistani Corporate IT Environments

Our infrastructure engineers at Trade Orient Pakistan typically recommend the WS-C3750X-24P-S for the following deployments:

1. High-Availability Campus Access: Utilizing StackWise Plus and StackPower to ensure zero downtime for critical workstations and VoIP phones in call centers or large enterprise offices.

2. Routed Access Layer: Leveraging the IP Base feature set to push Layer 3 routing down to the access tier, limiting broadcast domains and improving overall network performance and security.

3. IP Surveillance and Wireless Aggregation: Providing centralized PoE+ power and Gigabit throughput for dense deployments of high-definition CCTV cameras and enterprise wireless access points across warehouses and corporate facilities.

Frequently Asked Questions

Is the Cisco WS-C3750X-24P-S a Layer 3 switch?
Yes. The WS-C3750X-24P-S includes the IP Base software image, which provides basic enterprise Layer 3 routing capabilities, including OSPF for routed access, RIP, EIGRP stub routing, and static routing.

What uplink ports does this switch have?
Out of the box, the base chassis does not include fixed uplink ports. It requires a separate, hot-swappable Network Module. Common modules include the C3KX-NM-1G (four 1G SFP ports) or the C3KX-NM-10G (two 10G SFP+ ports).

How much PoE power can the WS-C3750X-24P-S deliver?
With the default 715W power supply, it offers a 435W PoE budget. It supports IEEE 802.3at PoE+, allowing it to deliver up to 30W per port for supported endpoint devices.

Procure Tested Cisco Hardware with Trade Orient Pakistan

Deploying enterprise switching requires a hardware partner that understands both the physical infrastructure and the logical configuration. Trade Orient Pakistan supplies fully tested, refurbished, and certified Cisco Catalyst networking equipment to corporations and data centers across Pakistan.

Before any 3750-X series switch leaves our facility, our Network Engineers test all PoE interfaces, verify internal fan and power supply health, reset legacy configurations, and assess firmware stability. We back our hardware with structured Annual Maintenance Contracts (AMC) and SLA-based support.

Need a network infrastructure assessment or a hardware quote? Contact our Karachi engineering team today for the current B2B price and availability of the Cisco WS-C3750X-24P-S.
